Parts are assembled. The two 1/4" square pieces determine the distance to setup the reed switch for on/off operation. This varies with strength of the magnet. |
 |

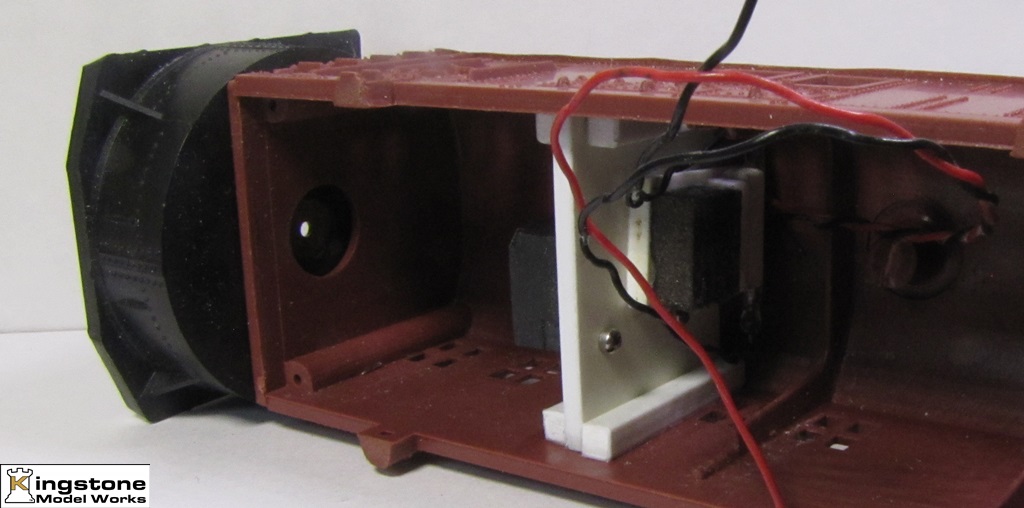

Wires hooked up. Red wire to one side of motor. Black to reed switch, then to motor. |
 |
Assembly mounted to plate and glued to backside of motor plate. Magnetic reed switch is in close proximity of the roof for activation of the reed switch. |
 |

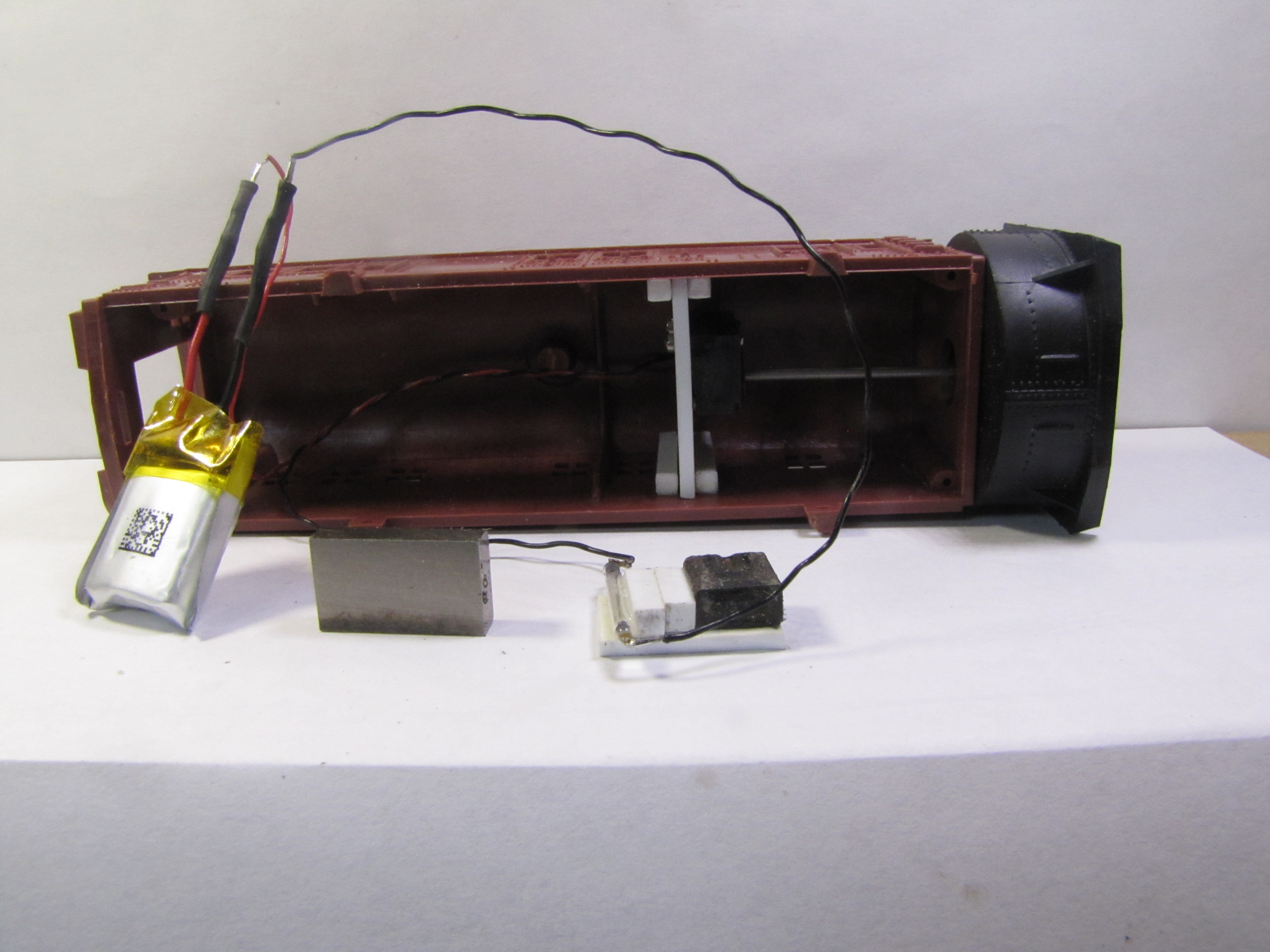

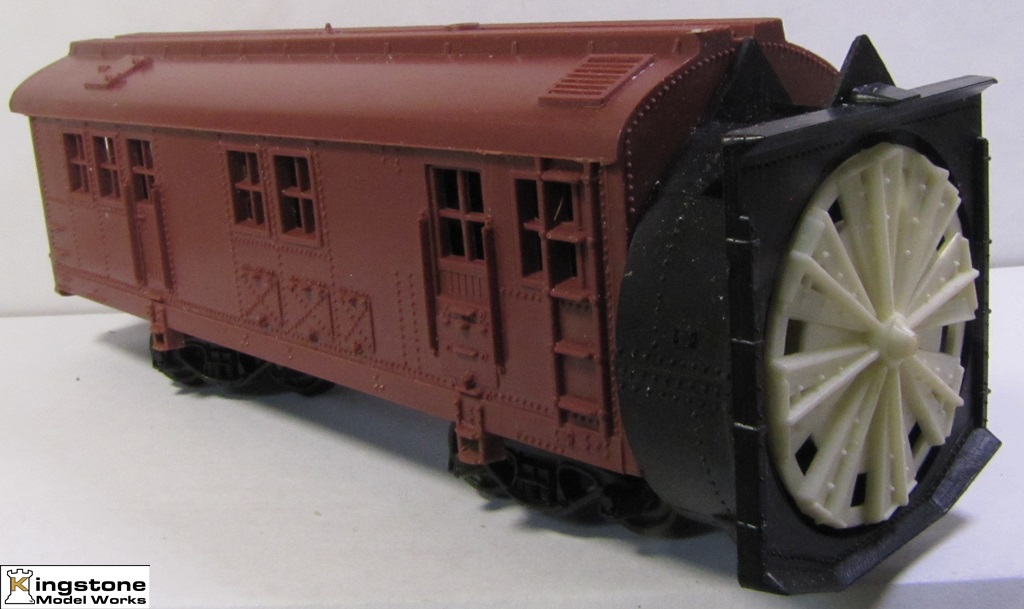

All components assembled ready for a test run. |
 |

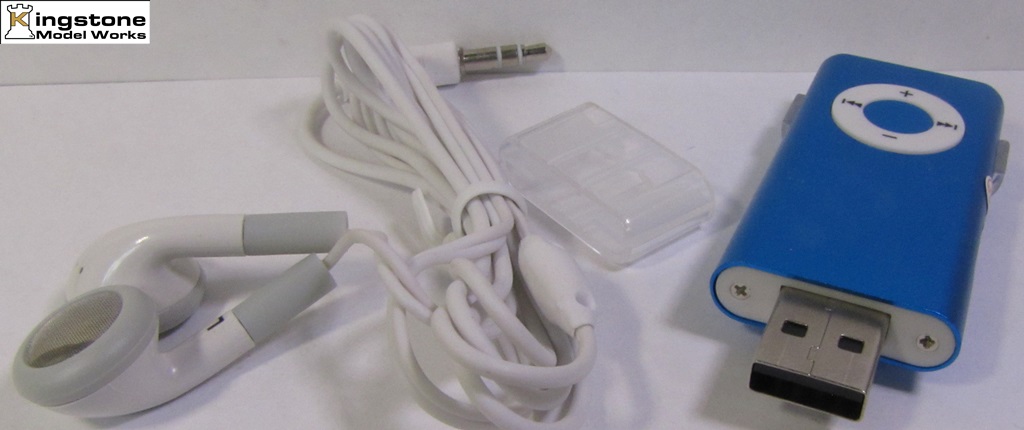

In order to charge the battery I us a USB music player I found on E-bay. |
 |

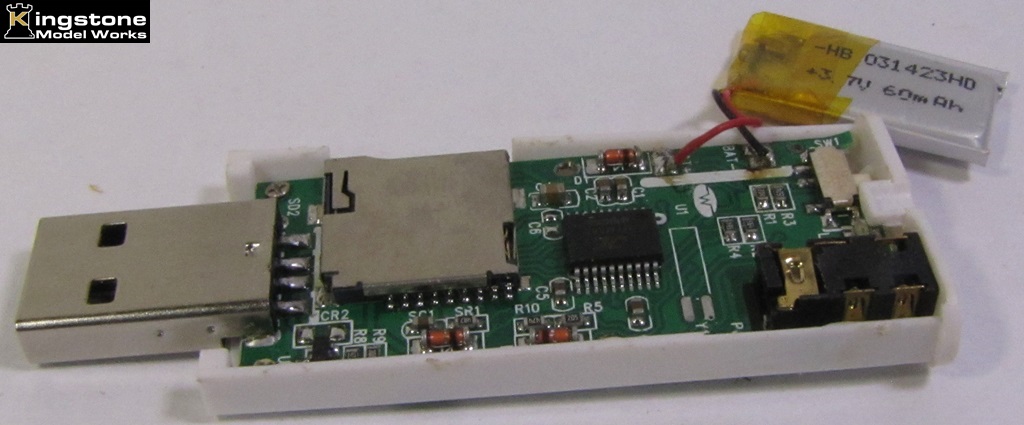

The inside of the player. This battery is not the battery I used. |
