Deltang TX 20 Radio Control Throttle

Custom built R/C throttle box

NOTE:Click on picture to enlarge. Click back button on your browser to return to this page.

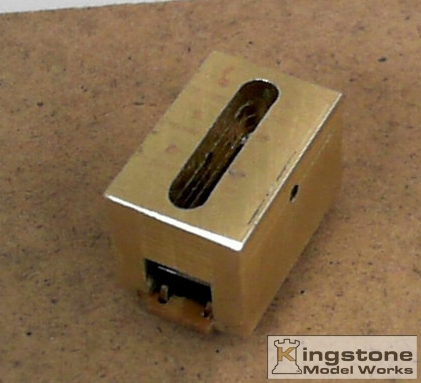

Opposite side showing slot for operating lever.

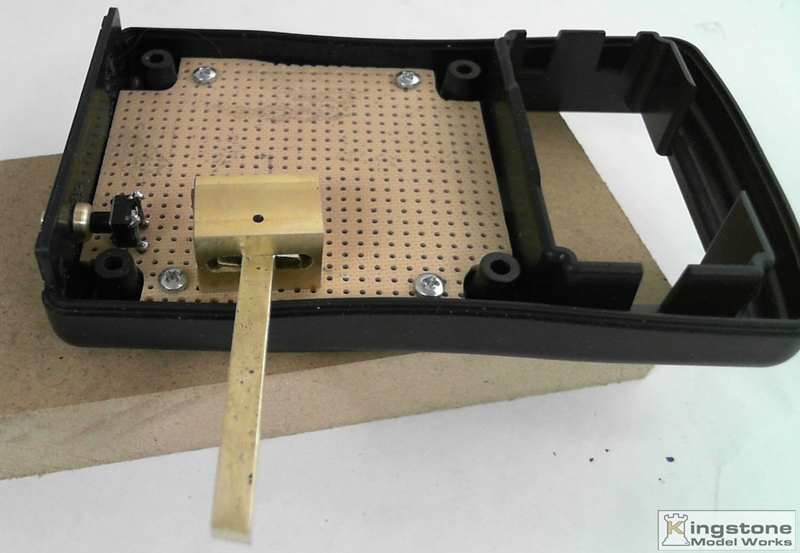

Operating lever temporality in slot.

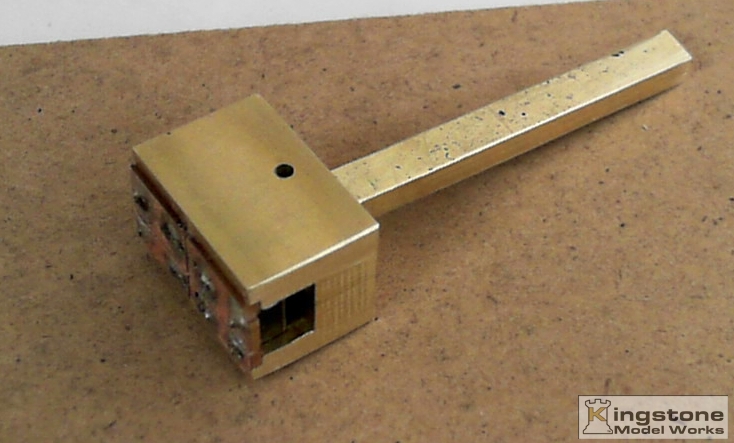

Approximate location of custom lever.

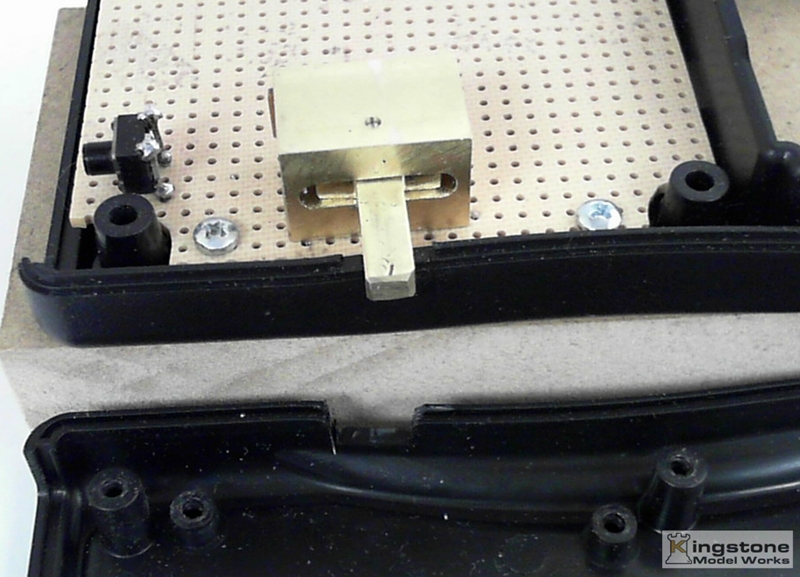

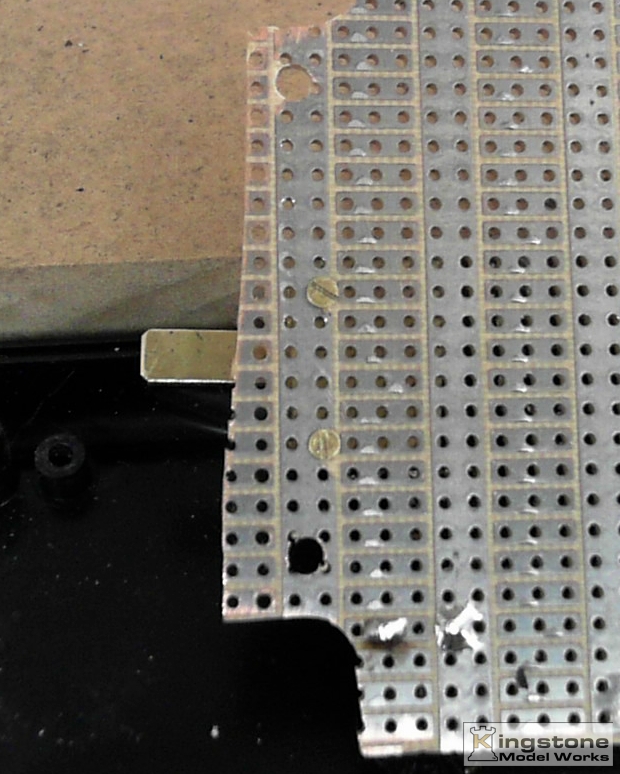

Custom lever screwed down with two
0-80 screws.

Both top and bottom covers cut out to
clear lever and lever shortened.

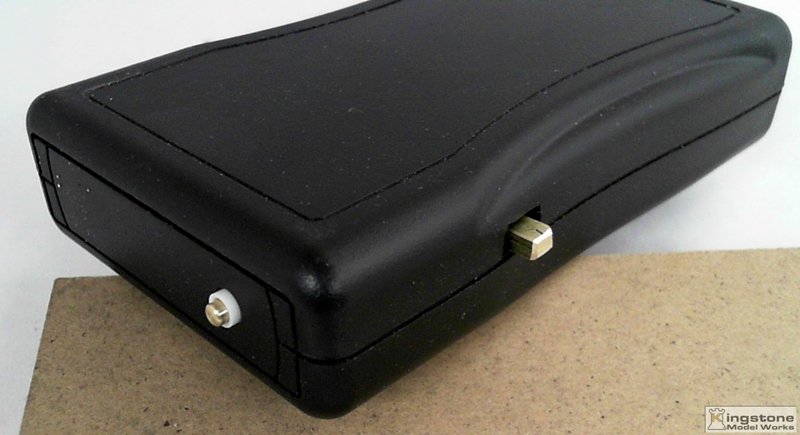

Final postion without rubber boot.

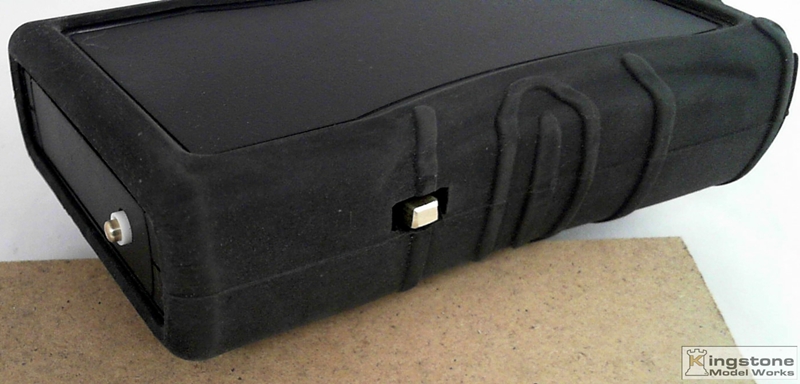

With rubber boot.

I didn't like the nub of brass sticking out the
side. I thought a nice looking bat style lever
would look better. I found that in these mini

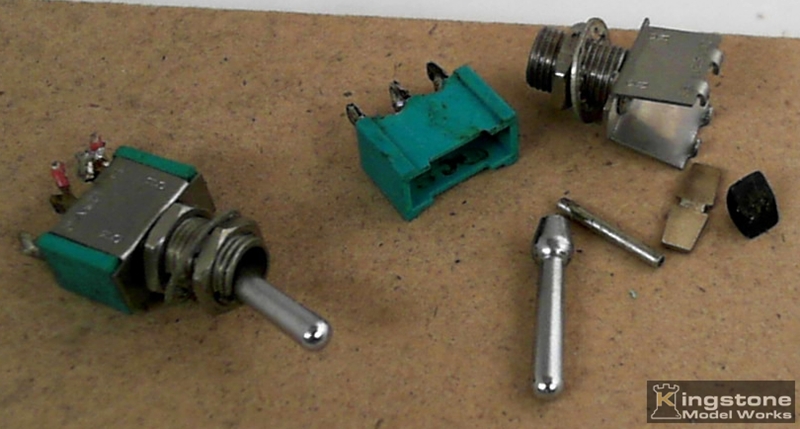

bat lever toggle switches. Just pry apart and
the parts fall out.

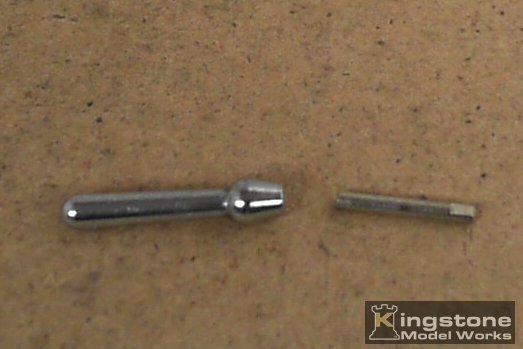

These are the parts you'll need.

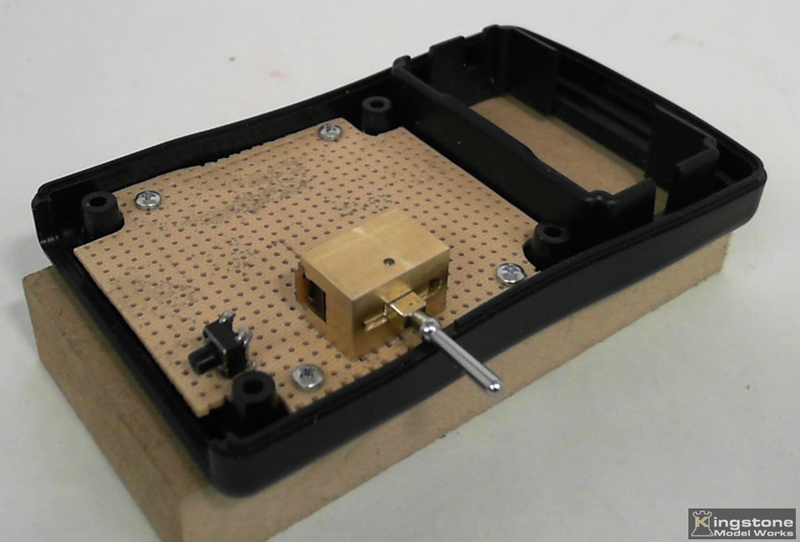

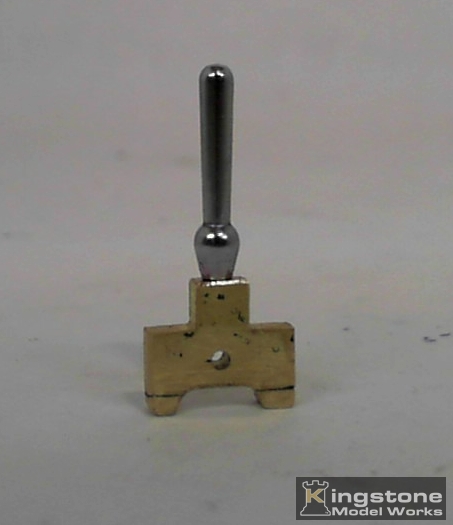

Lever assembled on end of actuator.

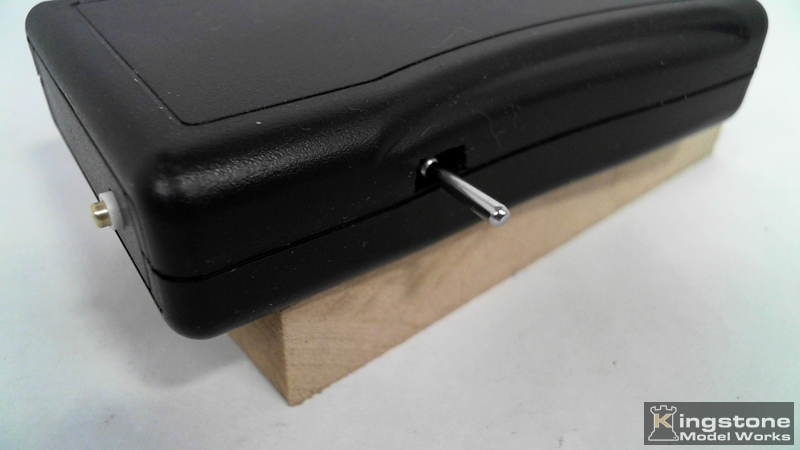

Looks much better.

Even better yet.

This project has been sitting on the back burner for several years now.
I hope to finish it one of these days.
