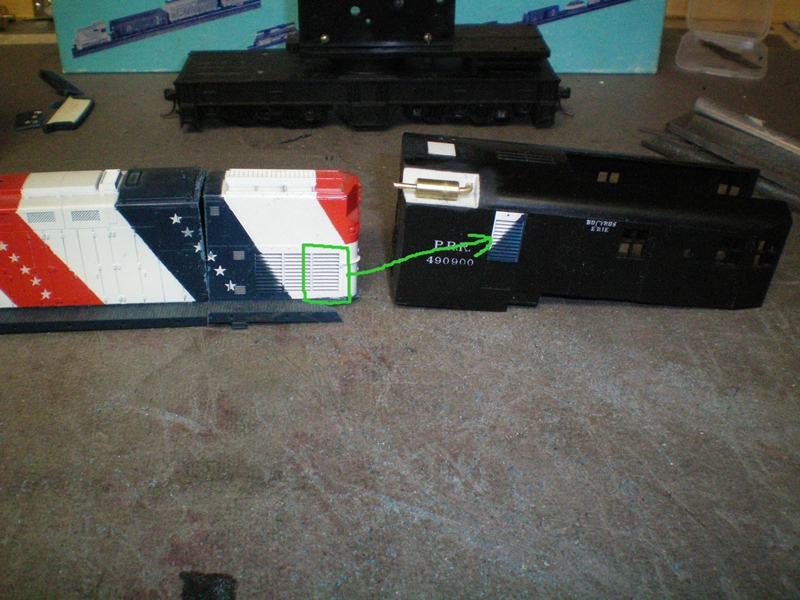

Instead I used 1/3 of the louvers to glue over the furthest door toward the end. |
 |
Same for the other side. |
 |

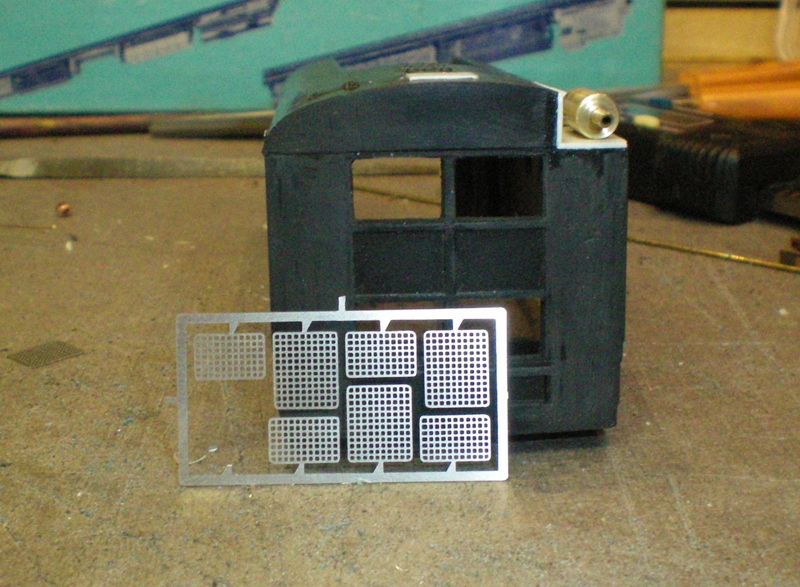

Looking for some grills to put into the holes I cut out I had these. The parts above are etched nickel silver headlight grills for large scale car detailing. I've had this for a long time and couldn't tell you the manufacturer. They were purchased in my LHS. |
 |
Problem is they are to small. What to do? |
 |

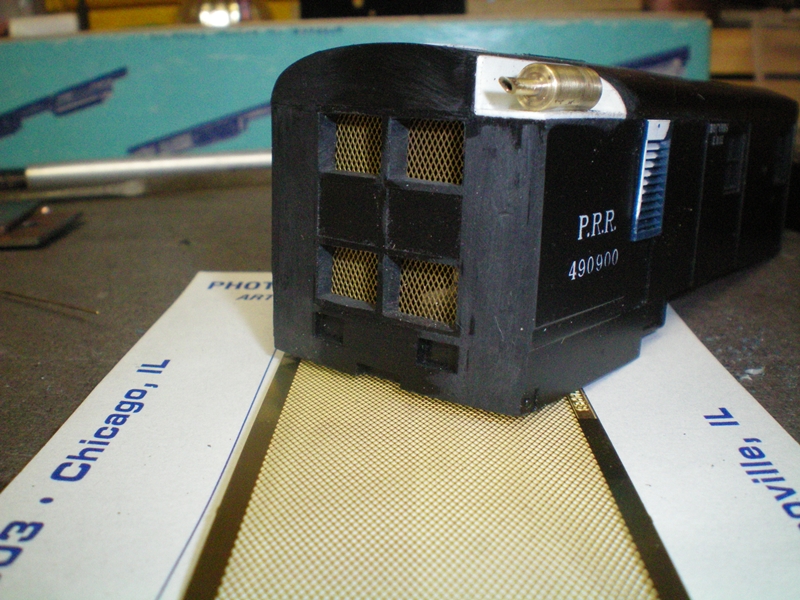

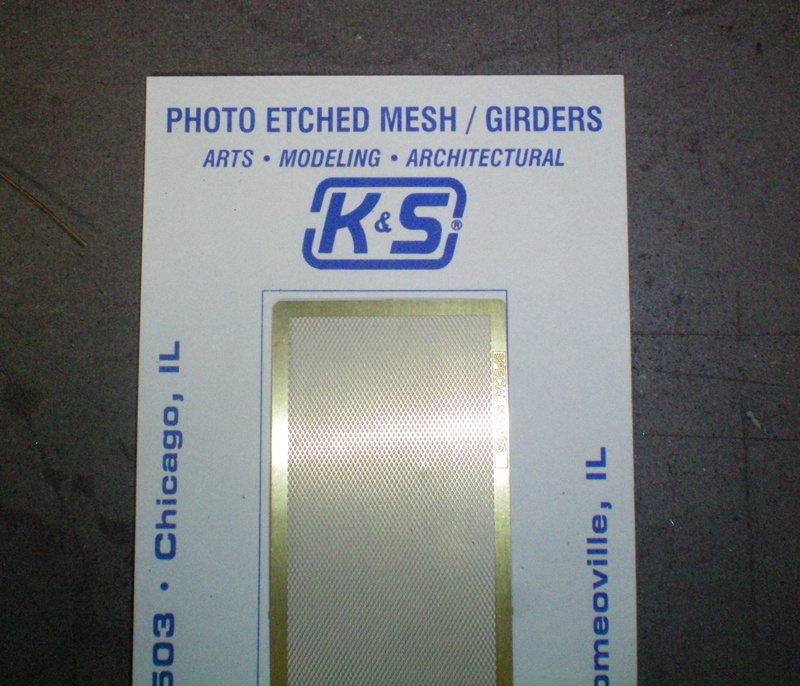

Well I had some of this nice diamond see through etched brass from K & S Metal. |
 |
I cut a square piece and glued it behind the openings. |
 |

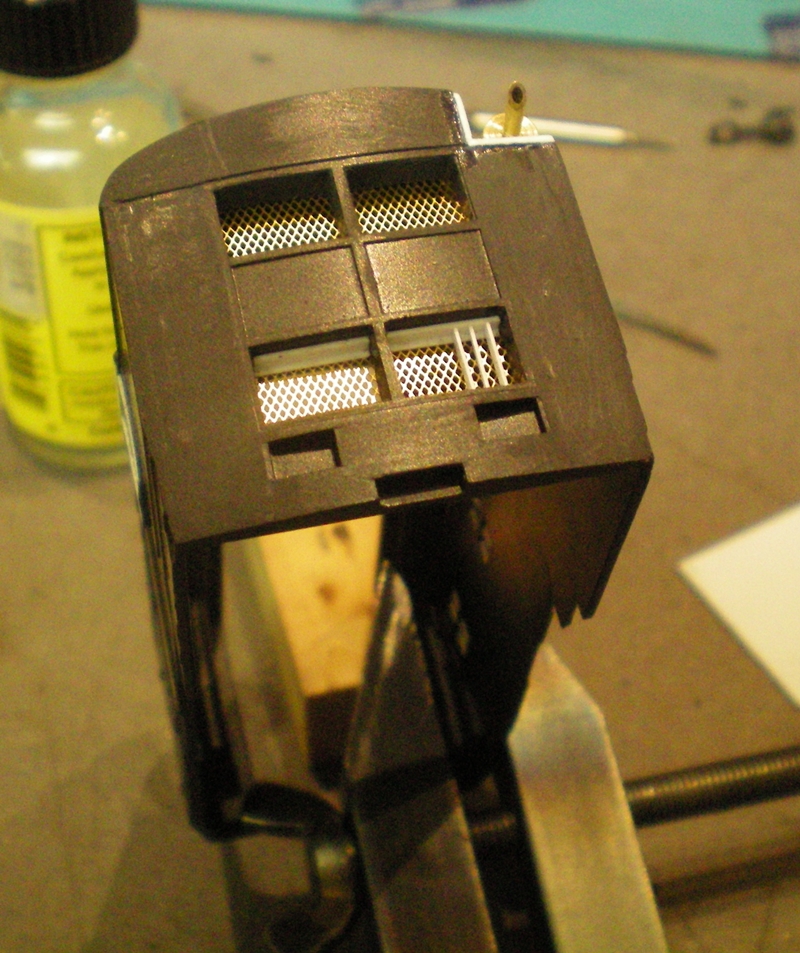

I wanted to represent louvers that open & close to control the temperature as I've seen on diesels. I used pieces of angle and 1" X 2" HO scale strips to represent the individual louvers. Each is cut to length and glued in individually. |
 |

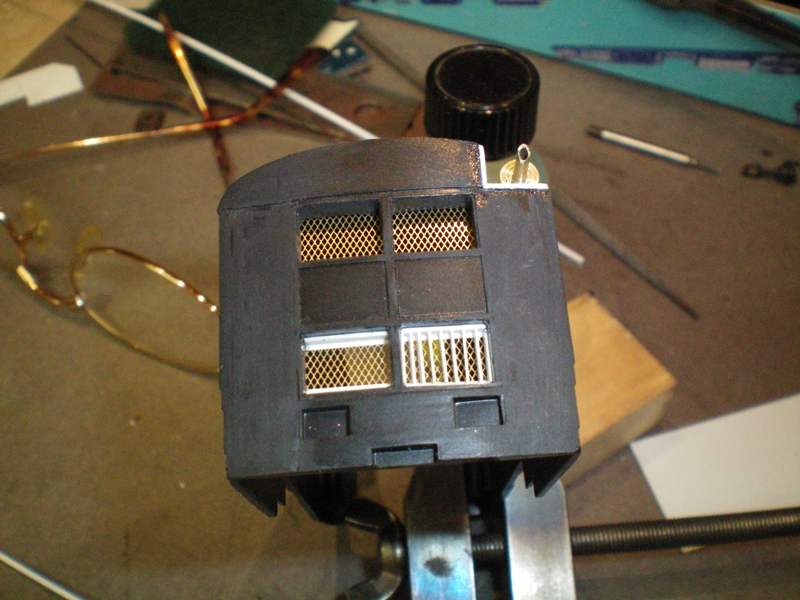

One side done. |
 |

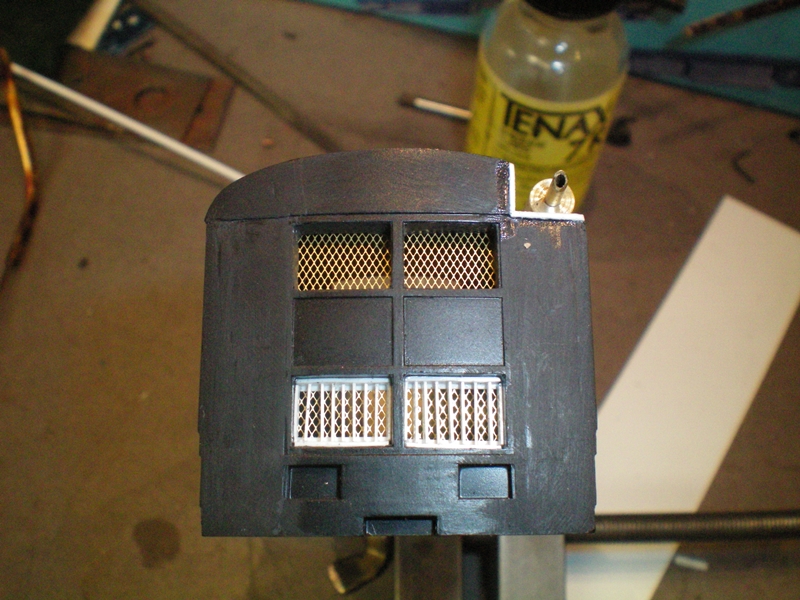

Last louvers done. Only the bottom get louvers. |
 |

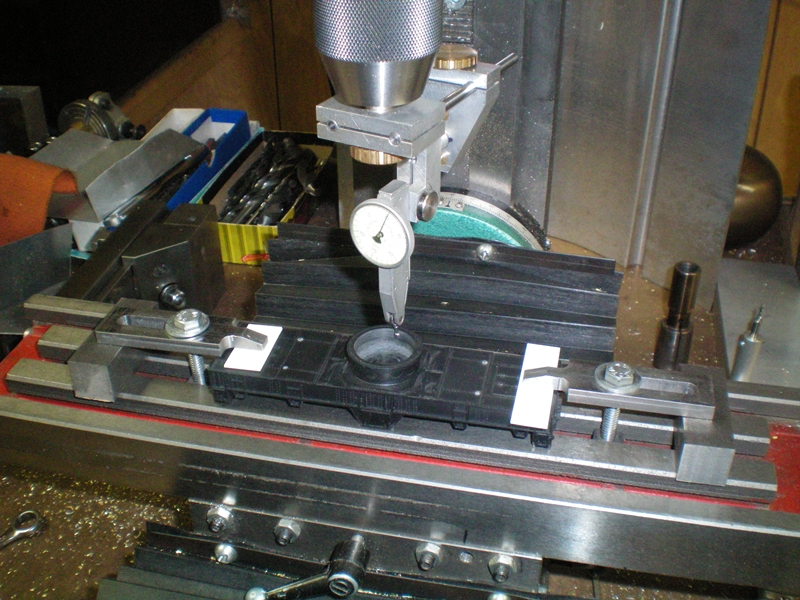

Time to drill the hole in the center of the frame for the slewing motor shaft. I used my mini-mill and centered the ring. |
 |

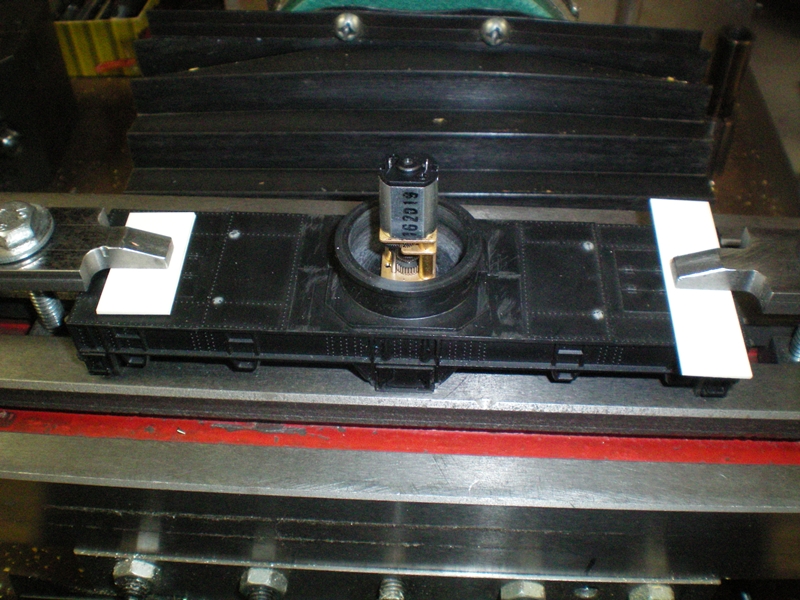

Testing for fit of the motor in hole. |
 |
Drilling a hole in the swivel base. |
